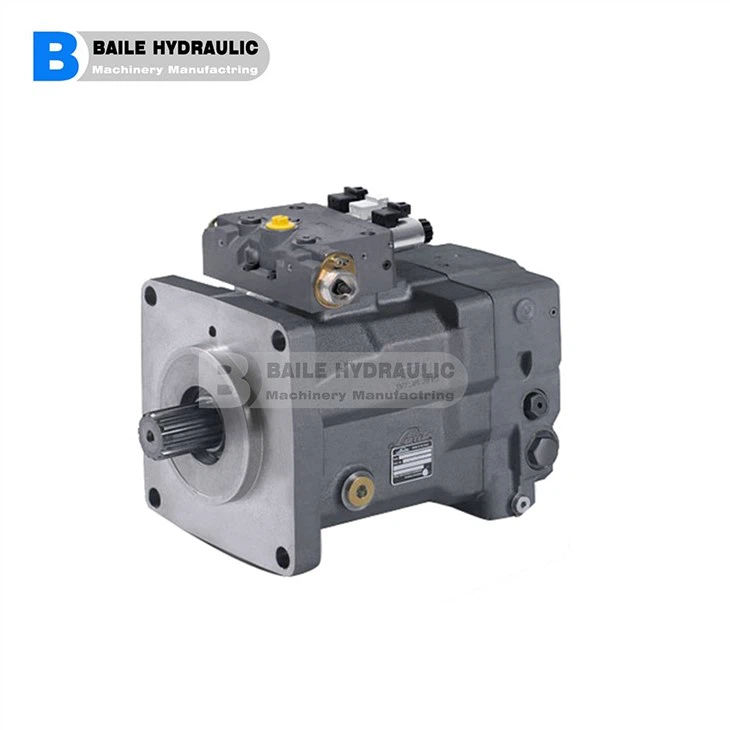

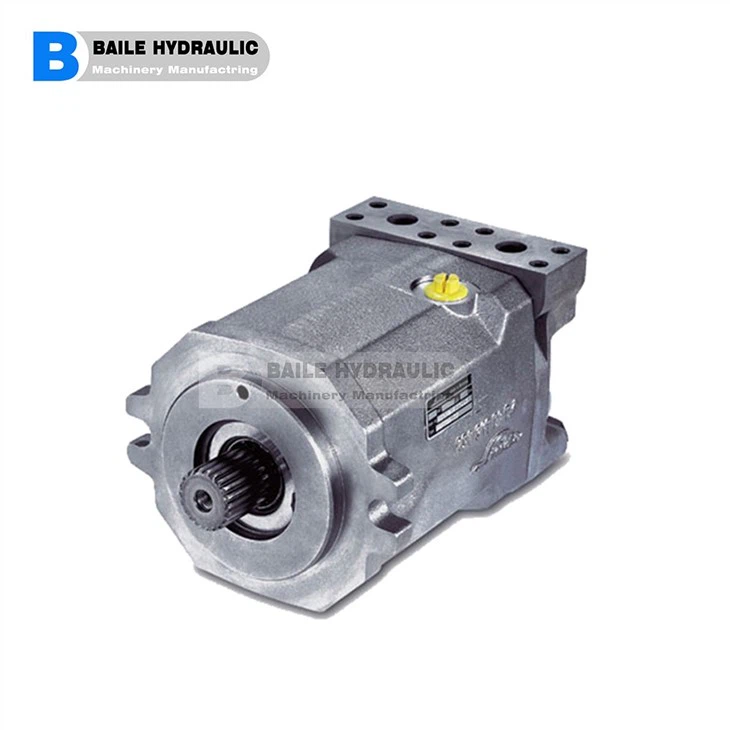

ЛИНДЕ ХМВ-02 хидраулични мотори за рад у затвореном и отвореном кругу

1.control optional swashing to 0 cc /rev y 2 .swash plate hydrostatic bearing 3. piston-slipper assembly 21° swash angle 4. housing monoshell for high rigidity 5 .valve plate housing highly integrated 6. control piston integrated, hydraulically captured 7. rotating group precise torque transmission even at low speeds 8. optional Trough-Drive available with two shaft ends for torque transmission. Design characteristics >> high pressure axial piston motor in swash plate design for closed and open loop systems >> optimised start-up and low-speed characteristics >> optionally with purge valves for circuit and case flushing >> HP valves possible >> through-shaft with bare shaft end or coupling flange >> SAE High pressure ports, radial or axial >> SAE mounting flange with ANSI or SAE spline shaft >> plug-in version optional >>сензор брзине опционоХМВ28-02 ХМВ35-02 ХМВ55-02 ХМВ63-02 ХМВ75-02 ХМВ85-02 ХМВ105-02 ХМВ135-02 ХМВ165-02 ХМВ210-02 ХМВ{{10}ХМА28-02 ХМА35-02 ХМА55-02 ХМА63-02 ХМА75-02 ХМА{ {16}} ХМА105-02 ХМА135-02 ХМА{{19} ХМА{{20} ХМА280-02 ХМР28-02 ХМР35-02 ХМР{{24 }} ХМР63-02 ХМР75-02 ХМР85-02 ХМР105-02 ХМР135-02 ХМР165-02 ХМР210-02 ХМР280-02 ХМФ28-02 ХМФ35-02 ХМФ55-02 ХМФ63-02 ХМФ75-02 ХМФ85-02 ХМФ105-02 ХМФ135-02 ХМФ{ {41}} ХМФ210-02 ХМФ280-02
